Features

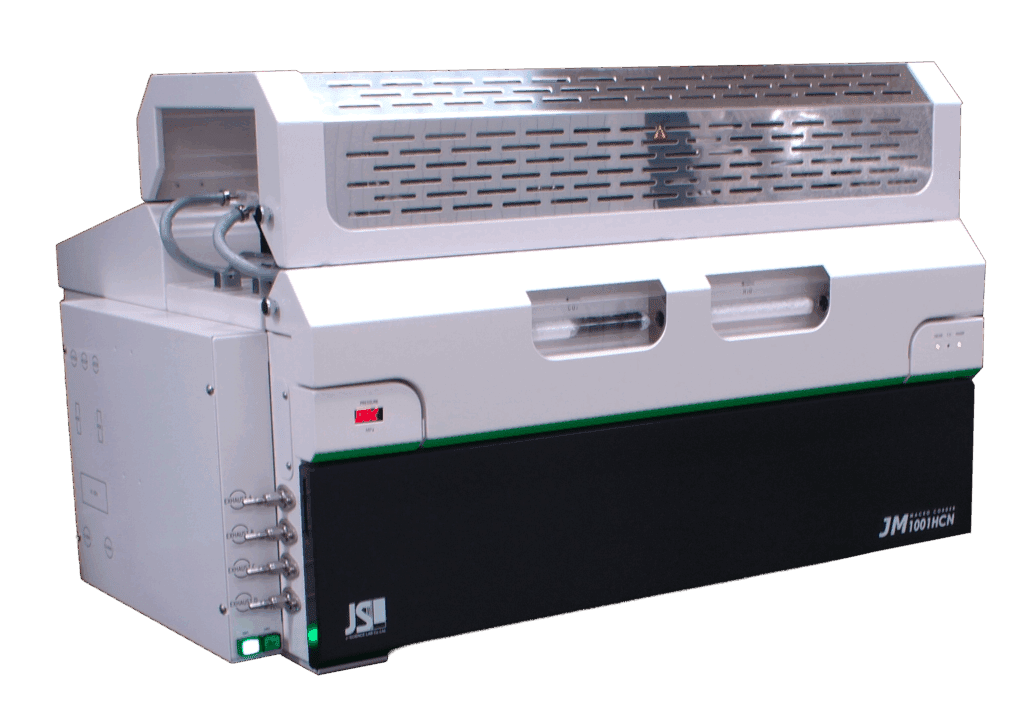

Carbon and Nitrogen Simultaneous Determination Unit.
- AgricultureAnalysis of carbon and nitrogen in soils and crops
- LivestockAnalysis of crude protein in raw materials and mixed fertilizers
Analysis of carbon and nitrogen in fertilizers - FoodAnalysis for quality control of raw materials and products
- FuelAnalysis of fuels such as oil and coal
- Chemical industryAnalysis of high molecular compounds, dyestuff, petrochemicals, etc
- Environmentanalysis of carbon and nitrogen in sludge and earth and sand on river bottom and sea bed; analysis of carbon, hydrogen and nitrogen in industrial waste Pharmaceutical and clinical analyses
Specification
- Measuring elementCarbon, Hydrogen, Nitrogen
- Analysis time9 to 10 minutes
- Measuring methodSelf-integration method (Piston pump is used)
- Measuring accuracyAbsolute error +/- 0.3% max
- Sample weightOrganic matter Max. 500mg, Inorganic max 1g
- Measuring rangeHydrogen 0.1 to 10mg
Carbon 0.2 to 125mg
Nitrogen 0.02 to 12mg
(The measuring range is for the case of analysis on standard conditions. The range can be extended through change of analysis conditions.) - DetectorThermal Conductivity Detector
Tungsten filament 60Ω, 4 channel - Detector oven100℃
- Pump oven55℃
- Power requirementAC100V +/-10% 50/60Hz, 4kVA
- JM1000 Dimensions, weight760(w)x585(d)x485(h) mm, 90kg
- JMA-1000, Autosampler Dimensions, weight900(w)x590(d)x470(h) mm, 40kg
